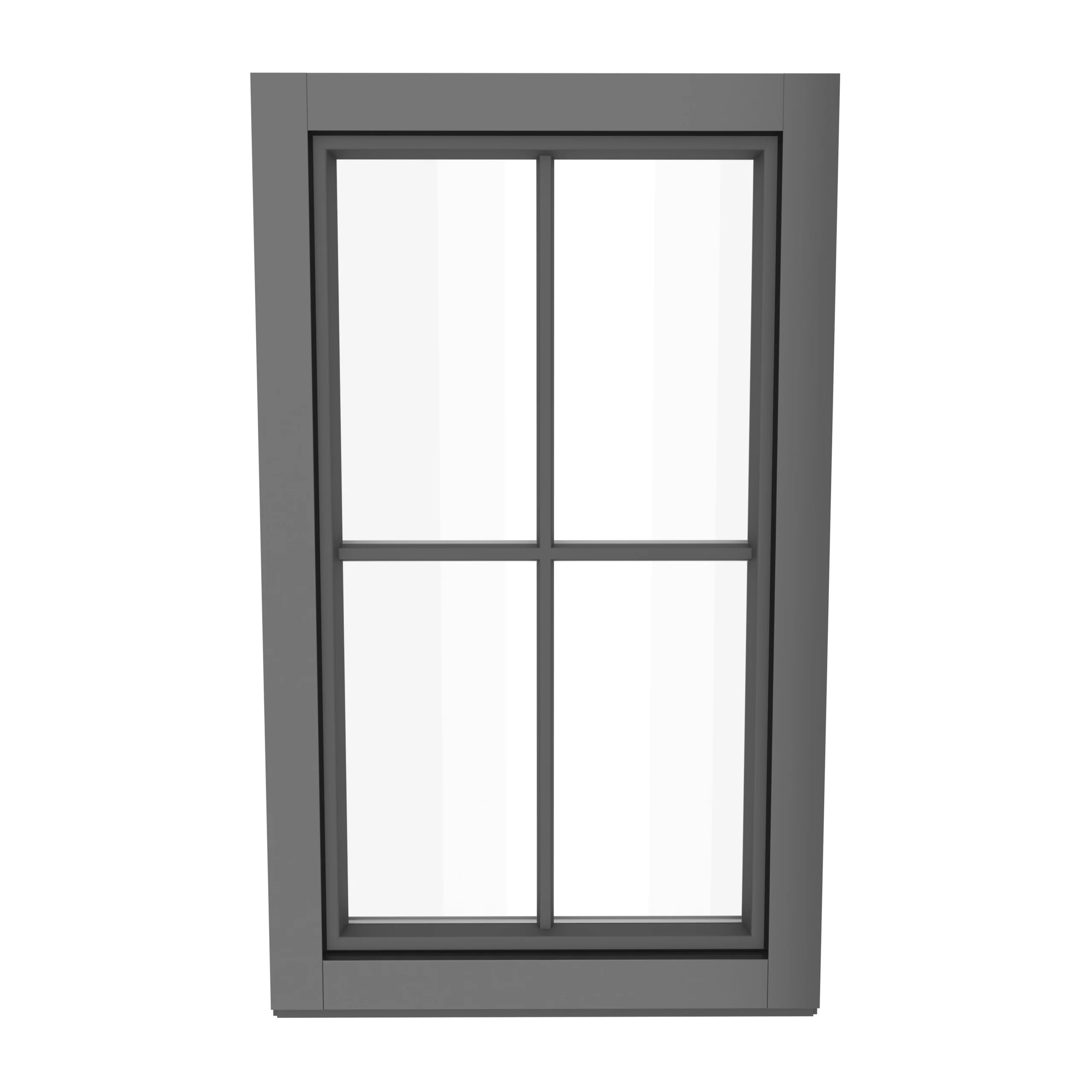

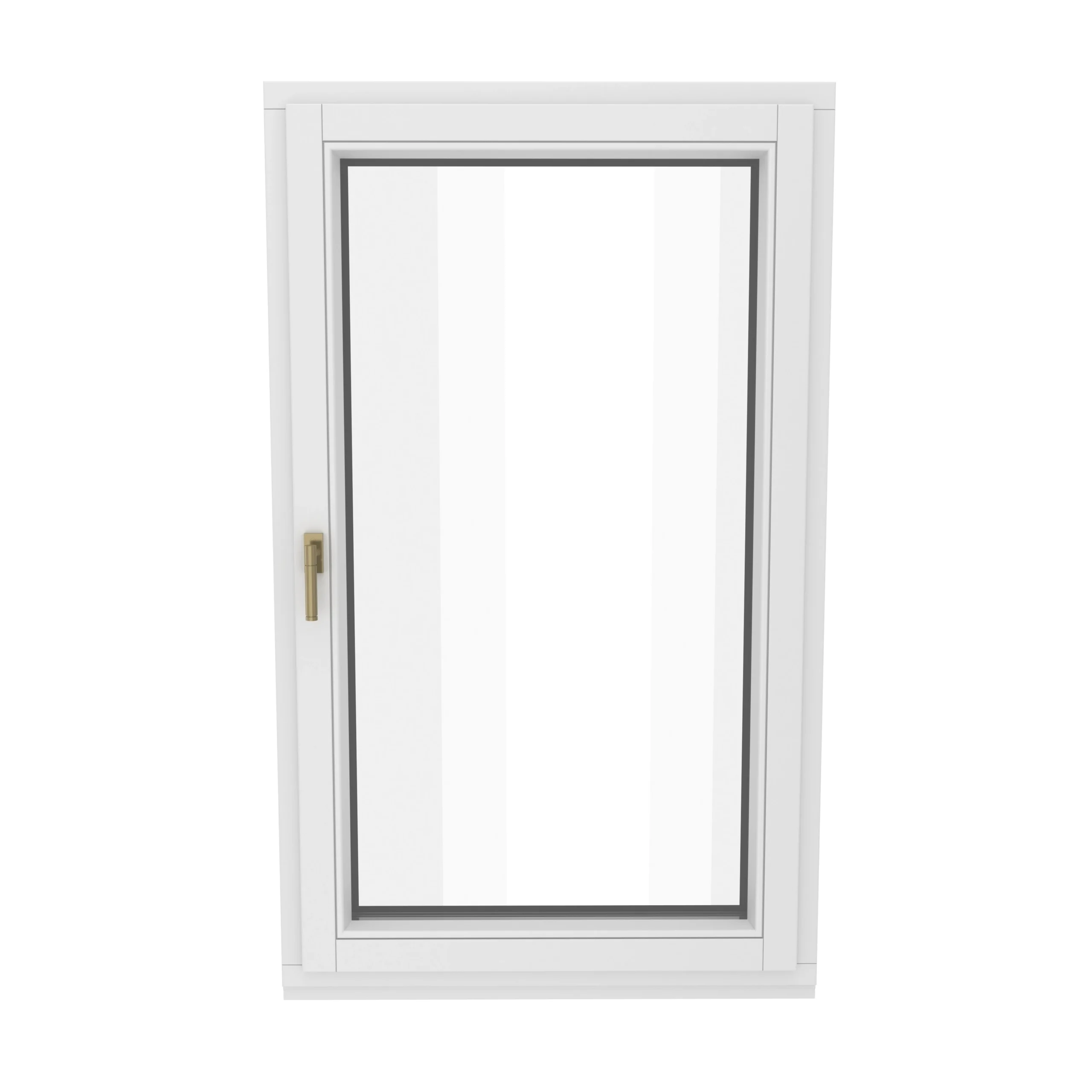

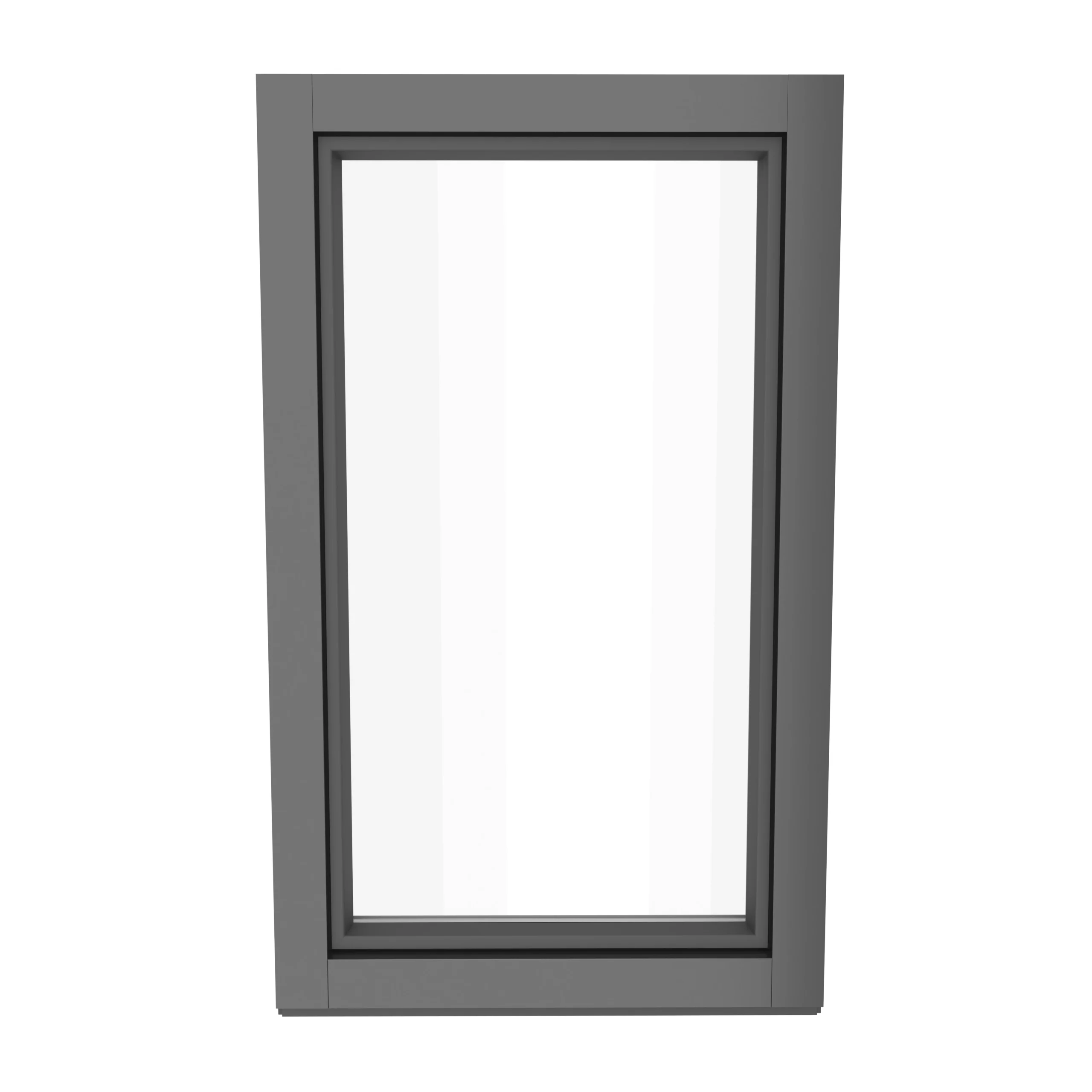

EW98A inwards opening timber-aluclad window

EW98A tilt & turn inwards opening timber – aluclad windows are a commendable choice for those seeking energy-efficient solutions without compromising on aesthetics. Combining the warmth of timber with the durability of aluminum cladding, these windows offer inherent insulation properties from the natural characteristics of timber. The aluminum cladding on the exterior enhances weather resistance and reduces maintenance needs. The innovative tilt and turn functionality provides versatility, allowing for partial top openings for controlled ventilation and full inward openings for easy cleaning and increased airflow.

The triple glazed glass unit is 52mm thick, filled with argon gas, warm edge spacer and two panes of Low-E glass. The glass Ug value is 0.53 W/m2K.

Uw value of the whole 1230mm x 1480mm standard opening window is Uw=0.8 W/m2K.

The depth of the frame with aluminium cladding is 108mm.

The triple glazed glass unit is 52mm thick, filled with argon gas, warm edge spacer and two panes of Low-E glass. The glass Ug value is 0.53 W/m2K.

Uw value of the whole 1230mm x 1480mm standard opening window is Uw=0.8 W/m2K.

The depth of the frame with aluminium cladding is 108mm.

The triple glazed glass unit is 52mm thick, filled with argon gas, warm edge spacer and two panes of Low-E glass. The glass Ug value is 0.52 W/m2K.

Uw value of the whole 1230mm x 1480mm standard opening window is Uw=0.76 W/m2K.

The depth of the frame with aluminium cladding is 108mm.

Engineered Timber

timber Engineered timber is made from short pieces of wood joint, glued, compressed and laminated together to form longer length timber without knots, splits and stains.
This solution makes engineered timber stronger and more less likely to warp or twist in wet and humid conditions compared to solid timber.

Wood Species

Pine - softwood

Main and most used softwood for our windows and doors. We are using slow growing pine from Nordic forests. Pine is soft, has medium density and is easy to work with. Knots are tightly fixed in the timber and are small in size. Being less expensive than hardwood, pine is often the choice of timber when considering your budget.

Oak - hardwood

Oak wood is characterized by a very good hardness and mechanical resistance, in particular to compression and bending, but also resistance to fungus and mold attacks. It presents a pleasant colours stratification, from the yellowish sapwood to the brown heartwood.

Red grandis - hardwood

Red Grandis is stable, durable and dense hardwood . The colour can vary to almost white to light pink or dark red. Typical uses for this timber are windows, doors, and all aspects of external applications. It is particularly well suited to large items such as door frames as it comes in long engineered lengths so it is less likely to bow and warp; this in turn reduces the need to overlap and finger joint frames.

Meranti - hardwood

Meranti is a soft to firm hardwood timber. This timber is exported from South-East Asia. It belongs to the mahogany species. Meranti is not subject to warping or twisting and is dent resistant. It has natural resistance to rot and moisture, insects and sunlight exposure.

Finish

Windows and doors can be finished in any RAL colour or combinations of colours.

RAL is a color standard created in Germany in 1925, which is widely used when choosing paint colors for painting various surfaces. It is a versatile and widely used color palette throughout Europe and beyond. RAL Classic consists of 216 colors. The RAL Design collection includes 1,825 colors. The colors of RAL Classic and RAL Design do not intersect.

You can view RAL colour collections here .

To ensure the smooth operation and optimal performance, our windows have 3 coats of sprayed microporous water-based paint.

Applied in controlled environment, multi-porous spray paints cover all concealed areas of the windows and doors, and are up to 6 times thicker than brush applied paints or stains, therefore offering a long service life with just simple maintenance.

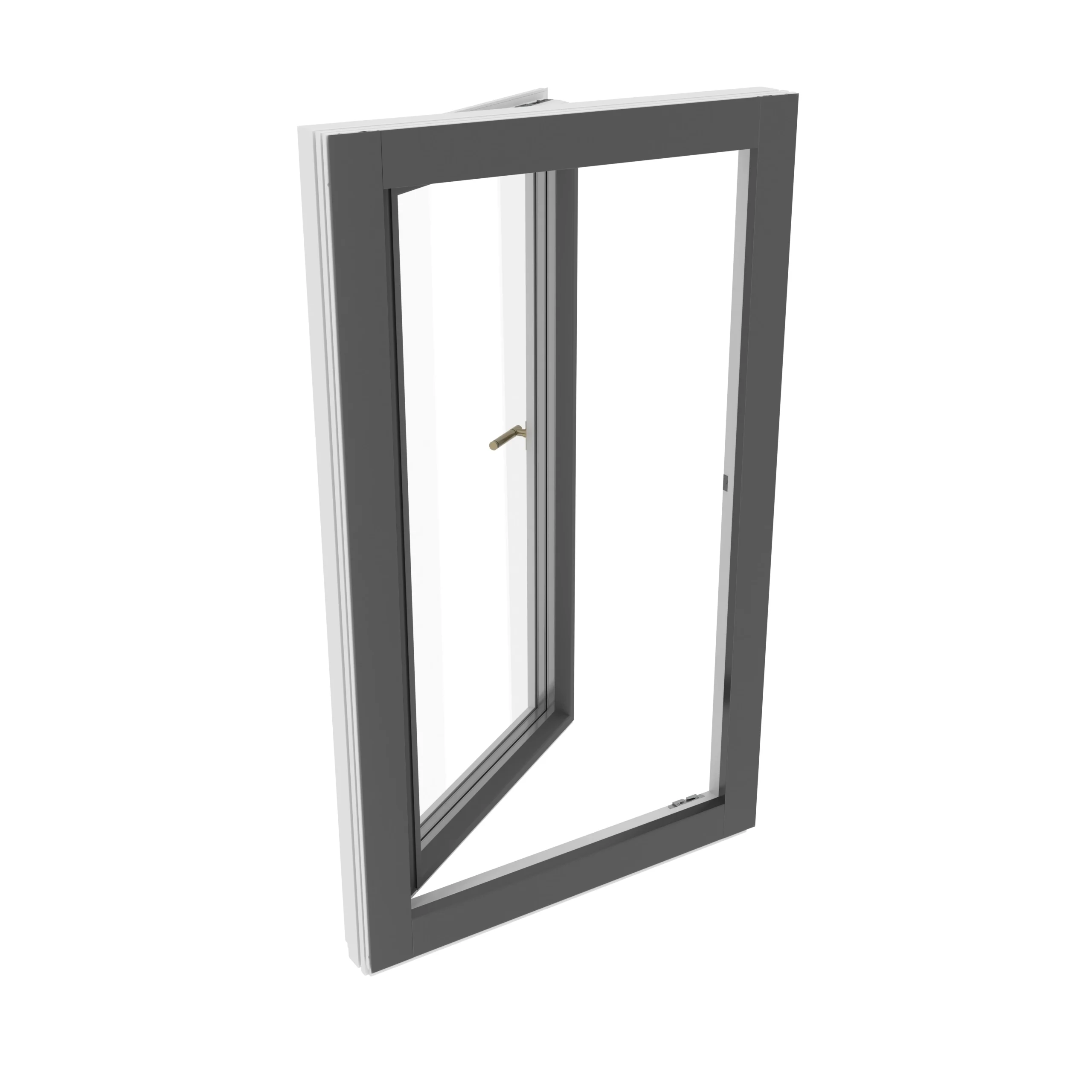

Inwards Tilt & Turn window opening options

turn and tilt

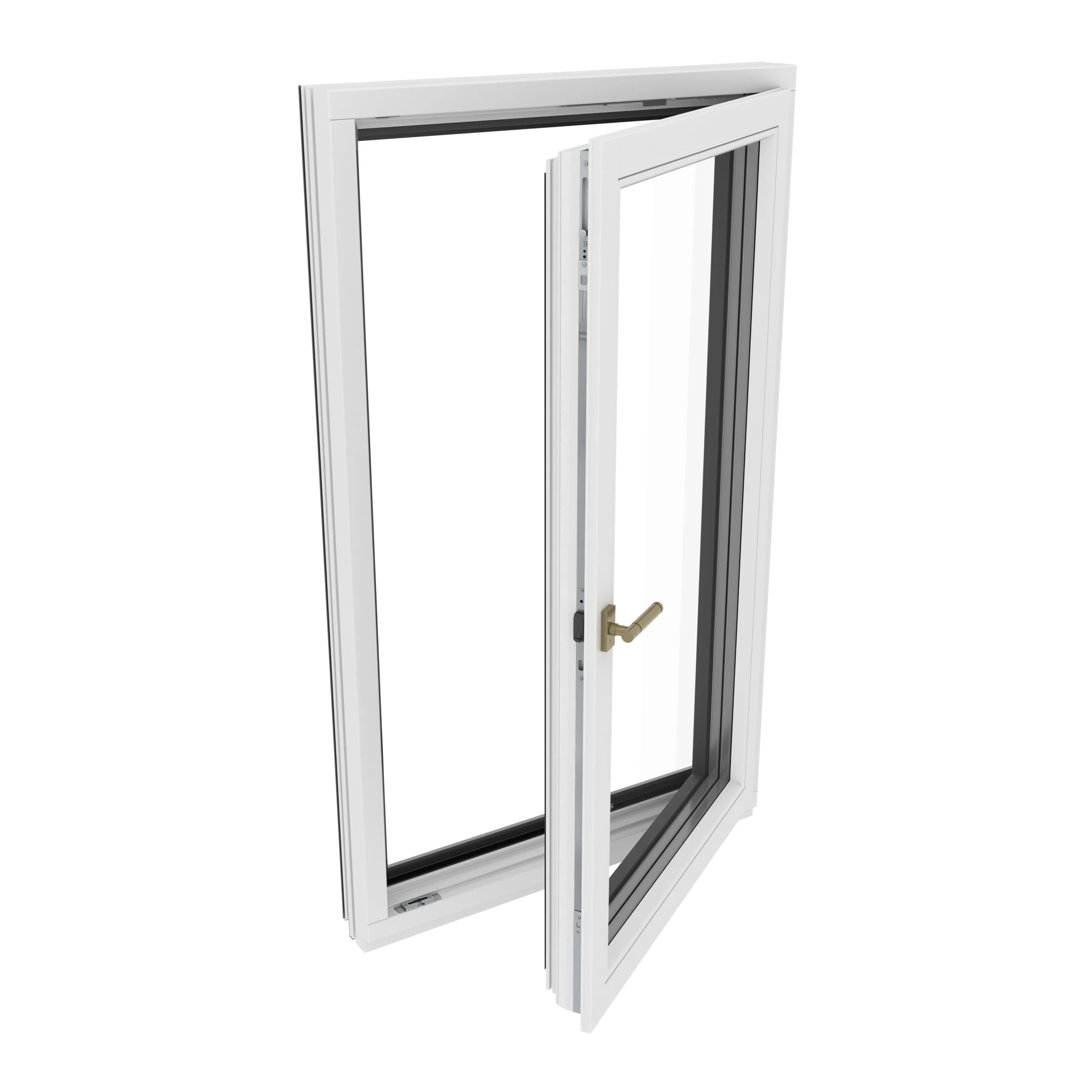

turn only

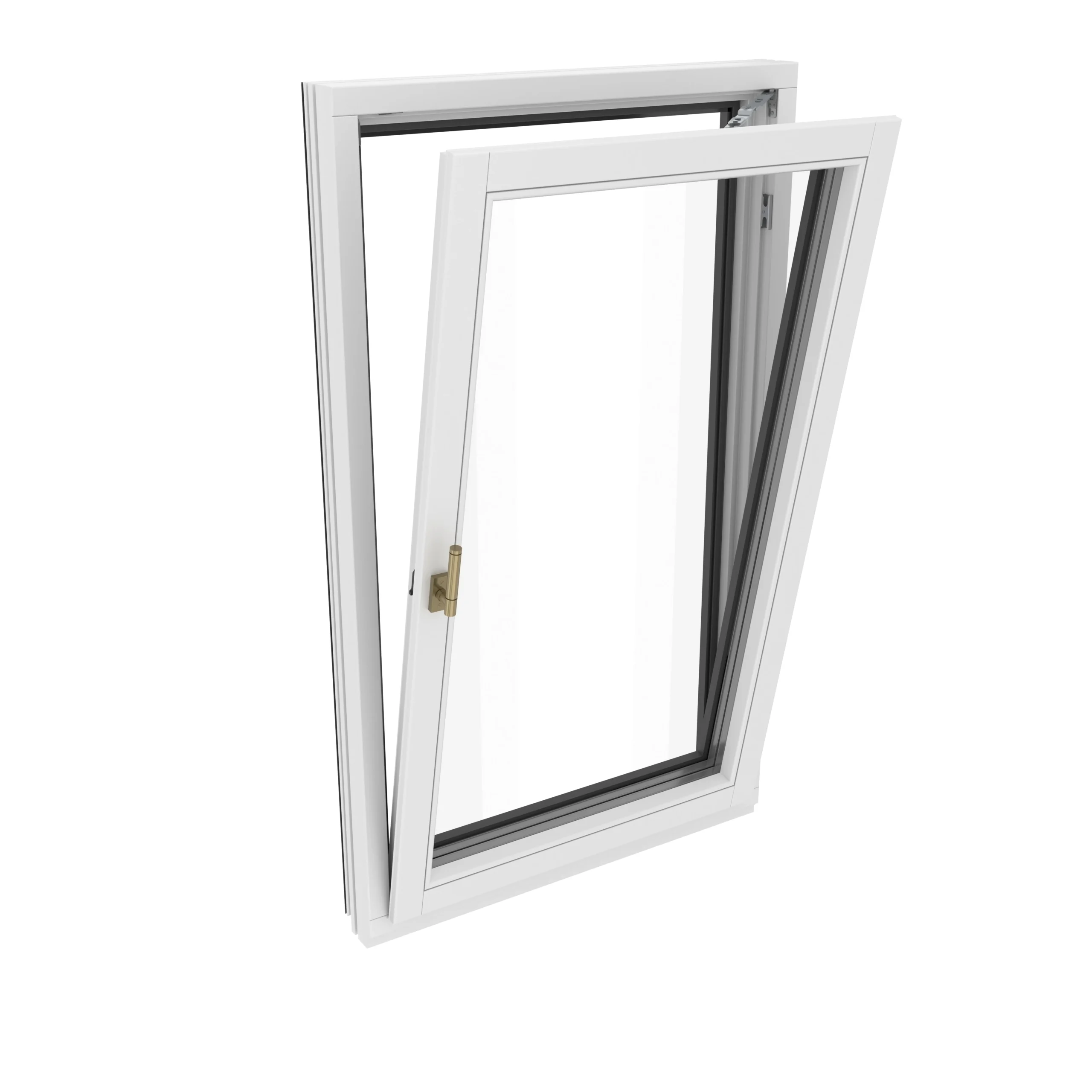

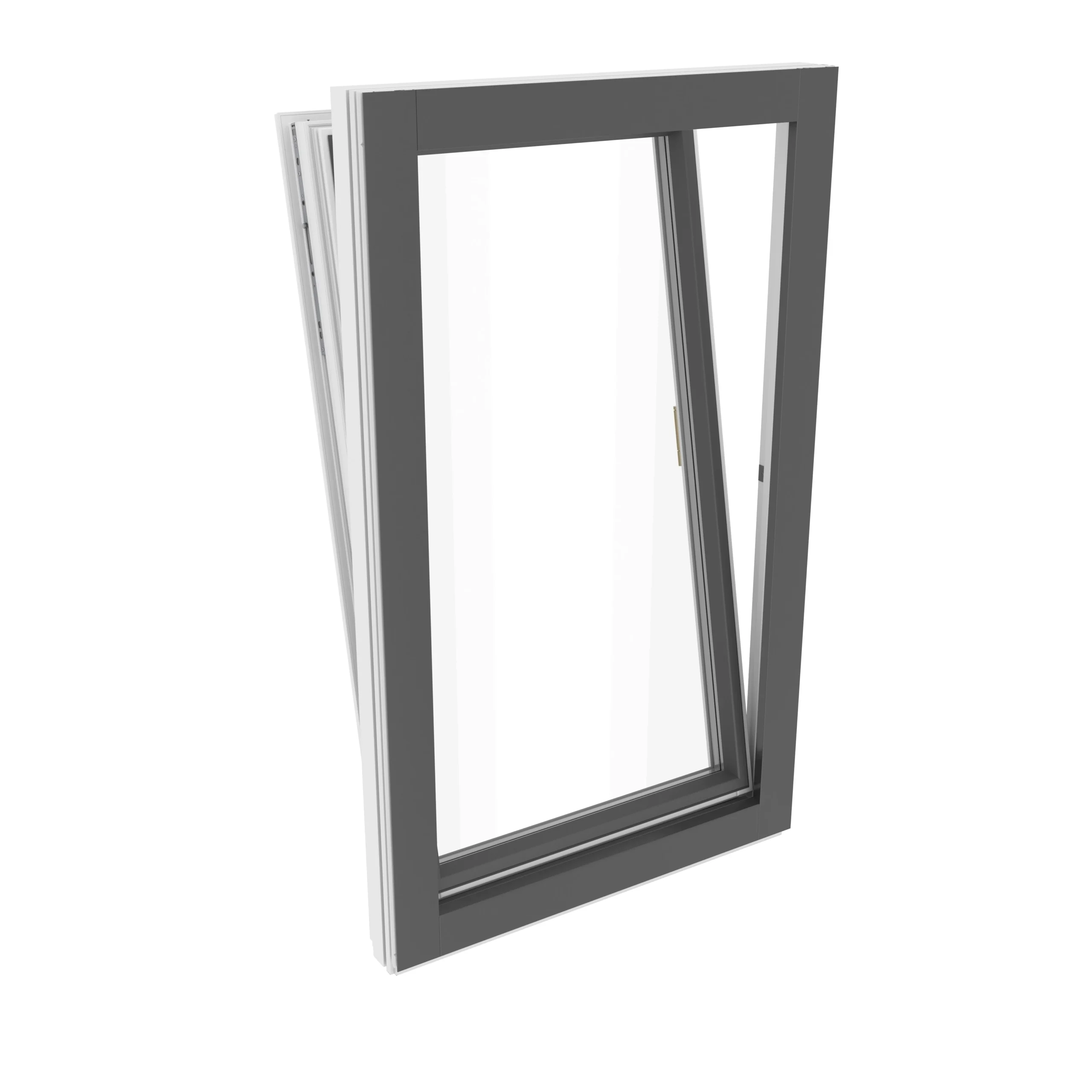

tilt only

turn and tilt

turn only

tilt only

turn and tilt

turn only

tilt only

Tilt & Turn window options

Glass options

LOW-E GLASS

is used as a standard in all our windows and doors.

It is specially treated with a microscopically thin, virtually invisible transparent coating on one surface. The coating reflects heat back into the building, thereby reducing the heat loss through the window.

TOUGHENED GLASS

is up to five times stronger than ordinary glass of the same thickness. Toughened glass is used where strength, thermal resistance, and safety are important.

LAMINATED GLASS

is a type of safety glass that holds together when shattered. It provides even greater security levels than toughened glass, and it offers better levels of sound reduction and thermal insulation.

ACOUSTIC GLASS

considerably reduces external noises, especially near busy areas such as motorways, main roads , railways and airports.

OBSCURE GLASS

available in various patterns to suit all locations and personal taste.

SOLAR CONTROL GLASS

is a glass with a special coating designed to reduce the amount of heat entering a building. It reflects and absorbs heat as well as filtering light for reduced glare. Using a solar control glass can reduce the need for air-conditioning and blinds. There are many types of solar control glass offering different aesthetic options; tinted, reflective and neutral.

Obscure Glass options

titan concealed hinges by siegenia

High load-bearing capacity up to a sash weight of 150 kg without additional parts
No additional frame parts and corner drives necessary
Sash is easy to fit in the slightly opened turn or tilt position
Optimally accessible 3D-adjustment possibilities: Continuous pressure adjustment on the top and bottom pivot for optimal sealing
Completely concealed pivots for a perfect window design
Particularly wear-resistant and durable
Continuous seal and integrated pressure adjustment for more compression and increased thermal insulation

SIEGENIA TITAN EXPOSED HINGES

Large window formats in an elegant hinge side design
For timber or timber-aluminium windows up to 1.80 m sash width and 3 m height
Reliable load capacity: Turn-and-tilt sash up to 200 kg and turning sash up to 300 kg
Wear-resistant pressure die-cast steel combination with specially treated surface finish
Innovative ball-bearing for durably high ease of use
Milling on frame as with standard windows
No thermal bridge due to continuous seal

TITAN HANDLES BY SIEGENIA

Siegenia TITAN GLOBE lockable tilt & turn handles come as a standard in VictorianSASH windows. The quality of TITAN GLOBE handle results from the ideal combination of aesthetics and ergonomics with maximum functionality and security. They are available in silver, brown, bronze, white and black finishes.

Siegenia TITAN GLOBE lockable tilt & turn handles come as a standard in VictorianSASH windows.

The quality of TITAN GLOBE handle results from the ideal combination of aesthetics and ergonomics with maximum functionality and security.

They are available in silver EV1, black brown RAL8022, bronze F4 and white RAL9016 finishes.

DESIGNER / BESPOKE TILT & TURN HANDLES

Designer window handles can elevate the entire look of your windows and add a touch of luxury to your home. They come in a wide variety of styles, finishes, and materials to suit any taste and décor. Designer handles are typically made from high-quality materials, such as brass or stainless steel.

It’s important to consider that while many designer handles prioritize aesthetics, only some offer lockable handles.

Aluminium Window sill

Sill extensions available on request.

Trimvent Select S13 by Titon

Trimvent Select S13 is a surface mounted plastic slot ventilator that fits over a 13mm slot in a window and provides an Equivalent Area (EA) of 1700mm2 or 2700mm2 and can be fitted with an XC13 canopy or GS13 grille.
The S13 is ideal for refurbishment situations using any window material and is available in a variety of colours. Trimvent Select ventilators have been specified and fitted on millions of windows throughout the UK and mainland Europe over the last fifteen years.

EW98A tilt&turn WINDOW weather PERFORMANCE

U value, Wm²K		0.76
Resistance to wind load		5
Wind Resistance		C
Water tightness		9A (600)
Air Permability		4

* The value is tested for a 1230 x 1480 single opening window according to EN ISO 10077-1 with 4 LOW-E /20/ 4/ 20/ 4 Low-E, standard argon, Ug=0.519, thickness 52mm

EW98A inwards opening timber-aluclad window

0.76 W/m2K

CLASS 4

CLASS 5C

CLASS 9A

PAS24

SOUNDPROOF

0.76 W/m2K

CLASS 4

CLASS 5C

CLASS 9A

PAS24

SOUNDPROOF

0.76 W/m2K

CLASS 4

CLASS 5C

CLASS 9A

SOUNDPROOF

PAS24
