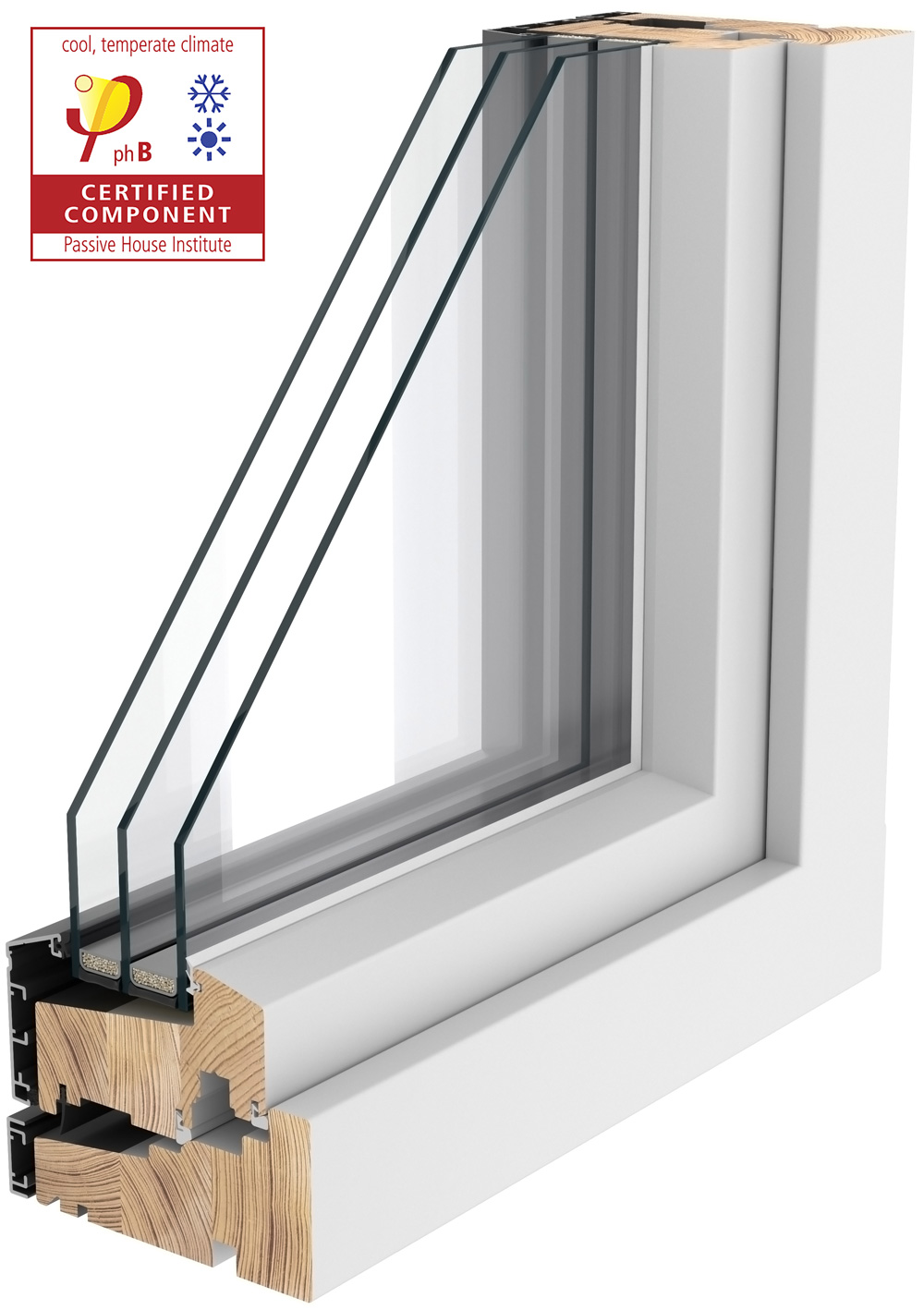

EW14P outwards opening passive window

EW14P outwards opening passive window is certified as Passive House Component by Passive House Institute in Germany. Certified window is made from engineered spruce and is only available with aluclad.

EW14P passive window guarantees energy efficiency. Its three gaskets ensure that profile system is highly insulated. Aluminum cladding on the exterior side improves the endurance of the wooden window.

The 50mm triple glazing with 2 low-E coatings (LowE or LowE1.0) and warm edge spacer (e.g. SGG Swisspacer Ultimate) gives excellent insulation and comfort. Sound insulation with the standard glass is 33dB.

Uw value of the whole 1230mm x 1480mm standard opening window is Uw=0.68 W/m2K.

The depth of the frame with aluclad is 132.5mm.

Uw value of the whole 1230mm x 1480mm standard opening window is Uw=0.68 W/m2K.

The depth of the frame with aluclad is 132.5mm.

Uw value of the whole 1230mm x 1480mm standard opening window is Uw=0.68 W/m2K.

The depth of the frame with aluclad is 132.5mm.

Engineered Timber

Engineered timber is made from short pieces of wood joint, glued, compressed and laminated together to form longer length timber without knots, splits and stains.

This solution makes engineered timber stronger and more less likely to warp or twist in wet and humid conditions compared to solid timber.

Outwards opening windows are made from high quality engineered/laminated timber without visible finger joint.

Wood Species

Spruce - softwood

Spruce is a softwood that is often used as an alternative to pine, because they both share similar density and strength characteristics. The colour is from creamy whit eto yellowish brown or red. It is not very susceptible to shrinkage and when dried remains stable.

Finish

Windows and doors can be finished in any RAL colour or combinations of colours.

RAL is a color standard created in Germany in 1925, which is widely used when choosing paint colors for painting various surfaces. It is a versatile and widely used color palette throughout Europe and beyond. RAL Classic consists of 216 colors. The RAL Design collection includes 1,825 colors. The colors of RAL Classic and RAL Design do not intersect.

You can view RAL colour collections here .

To ensure the smooth operation and optimal performance, our windows have 3 coats of sprayed microporous water-based paint.

Applied in controlled environment, multi-porous spray paints cover all concealed areas of the windows and doors, and are up to 6 times thicker than brush applied paints or stains, therefore offering a long service life with just simple maintenance.

opening options

side hung projecting 90 degrees

Sash dimensions:

W 500-869 mm x H 443-1669 mm

top hung projecting

Sash dimensions:

W 429-1569 mm x H 500-1569 mm

top swing (fully reversable 180 degrees)

Sash dimensions:

W 429-1669 mm x H 527-1626 mm

side hung projecting 90 degrees

Sash dimensions:

W 500-869 mm x H 443-1669 mm

top hung projecting

Sash dimensions:

W 429-1569 mm x H 500-1569 mm

top swing (fully reversable 180 degrees)

Sash dimensions:

W 429-1669 mm x H 527-1626 mm

side hung projecting 90 degrees

Sash dimensions:

W 500-869 mm x H 443-1669 mm

top hung projecting 90 degrees

Sash dimensions:

W 429-1569 mm x H 500-1569 mm

top swing (fully reversable 180 degrees)

Sash dimensions:

W 429-1669 mm x H 527-1626 mm

Glass options

LOW-E GLASS

is used as a standard in all our windows and doors.

It is specially treated with a microscopically thin, virtually invisible transparent coating on one surface. The coating reflects heat back into the building, thereby reducing the heat loss through the window.

TOUGHENED GLASS

is up to five times stronger than ordinary glass of the same thickness. Toughened glass is used where strength, thermal resistance, and safety are important.

LAMINATED GLASS

is a type of safety glass that holds together when shattered. It provides even greater security levels than toughened glass, and it offers better levels of sound reduction and thermal insulation.

ACOUSTIC GLASS

considerably reduces external noises, especially near busy areas such as motorways, main roads , railways and airports.

OBSCURE GLASS

available in various patterns to suit all locations and personal taste.

SOLAR CONTROL GLASS

is a glass with a special coating designed to reduce the amount of heat entering a building. It reflects and absorbs heat as well as filtering light for reduced glare. Using a solar control glass can reduce the need for air-conditioning and blinds. There are many types of solar control glass offering different aesthetic options; tinted, reflective and neutral.

Obscure Glass options

stopsol classic clear

stopsol classic bronze

Glazing bars

Glazing bar option 1

Duplex , aluminium glazing bar outside, ovolo profiled timber glazing bar inside

Glazing bar option 2

Without duplex , aluminium glazing bar outside, ovolo profiled timber glazing bar inside

Standard Handles

Our standard MILA Prolinea window handles have simple design and are available in range of finishes.

The ergonomic push button assembly provides smooth operation. The handles are available in locking or non-locking versions.

The cranked feature means that the handles are left and right handed which needs to be specified on order.

Heritage pear drop handles

Heritage monkey tale handles

EW14P outwards opening window weather performance

U value, Wm²K		0.68*
Resistance to wind load		5C
Water tightness		Class E1500
Air Permability		Class 4

* The value is tested for a 1230 x 1480 standard opening window with 4 LOW-E /18/ 4/ 20/ 4 Low-E, argon gas, Ug=0.53, warm edge spacer. Glass unit thickness 50mm.

EW14P outwards opening passive window

0.68 W/m2K

CLASS 4

CLASS 5C

CLASS E1500

SOUNDPROOF

0.68 W/m2K

CLASS 4

CLASS 5C

CLASS E1500

PAS24

SOUNDPROOF

0.68 W/m2K

CLASS 4

CLASS 5C

CLASS E1500

SOUNDPROOF

LAMINATED GLASS

Glazing bar option 2
